DR-30W DIN Rail Security PSU
12V / 24V DC | TS-35/7.5 RailCompact DIN-rail mounting power module featuring short circuit, overload, and overvoltage protections. Engineered for space-constrained access control panels.
View Specifications
An exhaustive B2B technical resource for system integrators, electrical engineers, and global procurement managers seeking mission-critical 12V/24V Security Power Supplies for CCTV, access control, perimeter intrusion, and emergency fire safety systems.
Understanding the technical distinction between standard industrial power modules and specialized uninterrupted security power units.
In modern infrastructure protection—ranging from municipal smart city camera surveillance networks to high-security corporate access control—the electrical stability of the underlying Security Power Supply dictates overall system uptime. Unlike standard industrial AC-DC switching power supplies that merely step down utility power to a single DC bus, an industrial-grade Security Power Supply acts as an integrated power management system. It bridges the raw utility mains, internal voltage regulation circuits, automatic battery switchover logic, and protective output distribution networks into a single fault-tolerant chassis.
For system integrators and electrical engineers, selecting an inadequate power supply introduces severe operational vulnerabilities: video frame loss caused by excessive AC ripple noise, premature battery degradation due to uncalibrated float charging, and systemic blackouts when localized cable shorts trip an un-fused power rail. At AWI Power Co., Ltd., our engineering team has spent over three decades perfecting high-efficiency topologies specifically designed to eliminate these failure modes.
High-tier Security Power Supplies manufactured by AWI Power Co., Ltd. utilize dual-rail internal routing with continuous online battery trickle-charge circuits. When main AC line power experiences voltage sags, brownouts, or total blackouts, the internal Schottky diode OR-ing circuit shifts the output load to the connected battery bank instantly (0 ms switchover time). This ensures IP cameras, biometric access controllers, and electromagnetic locks experience zero voltage dropouts, preventing device reboots or memory resets.
Modern high-density security power supplies rely on Advanced Pulse Width Modulation (PWM) flyback or LLC resonant topologies. Achieving power conversion efficiencies exceeding 88% is critical—not only for reducing global energy consumption, but for limiting heat dissipation inside sealed metal NEMA/IP enclosures. Elevated operating temperatures inside outdoor security cabinets represent the primary cause of electrolytic capacitor dry-out and shortened battery lifespan.
| Technical Parameter | Standard Switching PSU | Dedicated Security Power Supply | Smart IoT Security PSU System |
|---|---|---|---|
| Primary Application | General LED/Industrial Automation | CCTV, Intrusion, Fire, Access Control | Mission-Critical Infrastructure / Microgrids |
| Battery Backup UPS Channel | None (Requires external UPS) | Integrated Dedicated Battery Terminals | Smart BMS with Auto Battery Health Test |
| AC Input Voltage Range | 180-264VAC or 90-132VAC | Universal 90-264VAC (Full Range) | Universal 85-264VAC with Active PFC |
| Output Channel Isolation | Single Common Terminal Bus | Multi-Channel PTC Fuse Protected | Multi-Channel Smart Digital Trip & Reset |
| Ripple & Noise (p-p) | < 150mVp-p | < 50mVp-p (Optimized for Video) | < 30mVp-p Ultra-Low Noise |
| Diagnostic Signals | Power LED only | AC Fault & Battery Low Relay Contacts | SNMP, Modbus, RS485, Web Dashboard |
As demonstrated in the comparison matrix above, specified Security Power Supply units from AWI Power Co., Ltd. deliver measurable advantages in output isolation, lower electrical ripple, and integrated battery health monitoring, ensuring long-term system reliability across harsh physical environments.
Explore key model series manufactured by AWI Power Co., Ltd., built with high-grade components for global security projects.
Compact DIN-rail mounting power module featuring short circuit, overload, and overvoltage protections. Engineered for space-constrained access control panels.
View Specifications
Enclosed metallic casing with high thermal dissipation performance. Withstands 300VAC surge input for 5 seconds, making it ideal for unstable power grids.
View Specifications
Fully encapsulated aluminum shell for outdoor perimeter security cameras and Infrared illuminators. Immune to dust penetration and water immersion.
View Specifications
Ultra-narrow body optimized for multi-channel video distribution frames. Includes dedicated auxiliary terminals for seamless external battery integration.
View Specifications
Provides multiple independently protected outputs to prevent total system downtime if one security camera suffers a short circuit fault.
View Specifications
Designed for large-scale enterprise matrix systems, PTZ speed dome arrays, and central NVR control racks requiring sustained high current stability.
View Specifications
Precision regulated 12VDC power source tailored for single door lock controllers, standalone keypads, and card readers.
View Specifications

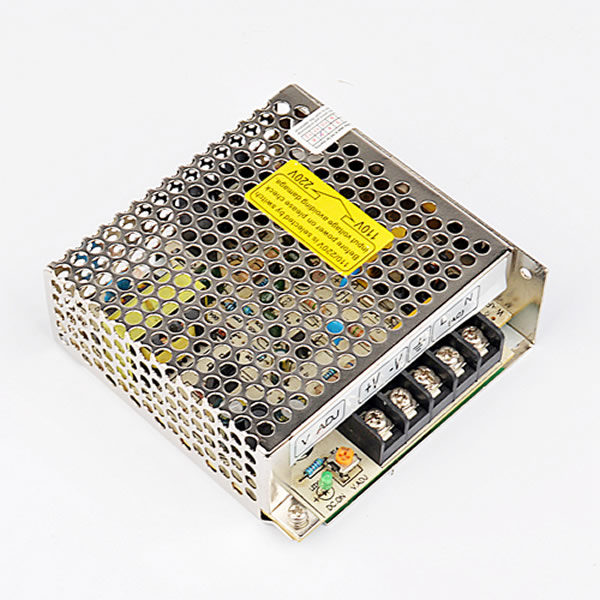

Proven workhorse switching power supply with 100% full load burn-in test. Trusted by security contractors across 30+ countries.
View SpecificationsKey architectural shifts driving B2B purchasing decisions in the next decade of physical security infrastructure.
The global physical security market is undergoing rapid evolution. As AI-powered edge computing video analytics, high-draw IR thermal cameras, and smart biometric access gates displace legacy analog equipment, the requirements placed upon the Security Power Supply are changing dramatically. Global procurement teams can no longer view power supplies as generic commodity components; they are critical system nodes that directly influence project operational expenses (OPEX) and SLA uptime metrics.
Historically, security power supplies with battery backup relied on 12V Valve-Regulated Lead-Acid (VRLA/SLA) batteries due to low initial capital cost. However, SLA batteries exhibit severe drawbacks: rapid capacity degradation at ambient temperatures above 30°C, high weight, slow charge acceptance rates, and a limited service life of only 2 to 3 years.
The market is rapidly shifting toward LiFePO4 (LFP) integrated security power supplies. LiFePO4 chemistry provides up to 3,500+ charge cycles (versus 300-500 for SLA), operates reliably up to 60°C, and offers double the usable energy density per kilogram. AWI Power Co., Ltd. is leading this transition by designing smart charging algorithms with customized multi-stage CC/CV profile curves and low-temperature cutoff protection tailored specifically for LiFePO4 battery management systems (BMS).
Traditional security installations require physical technician dispatch whenever an AC breaker trips or a battery reaches end-of-life. Future-ready Security Power Supplies are adopting IoT connectivity protocols including SNMP v3, Modbus-RTU over RS485, and MQTT for cloud telemetry.
By constantly transmitting real-time metrics—such as internal transformer temperatures, individual channel output currents, line voltage ripple levels, and battery internal resistance—security operations centers (SOC) can execute predictive maintenance. Potential failures are flagged and resolved days before a field blackout occurs, reducing total cost of ownership (TCO) by up to 40%.
Remote infrastructure projects—including highway traffic monitoring, border surveillance, oil & gas pipeline monitoring, and agricultural security—frequently operate on hybrid solar PV microgrids or unstable municipal power lines subject to extreme voltage fluctuations. Next-generation security power supplies must incorporate ultra-wide input voltage ranges (85VAC to 305VAC) and integrated Active Power Factor Correction (PFC > 0.98) to ensure smooth, efficient operation without harmonic pollution or thermal stress.
In-depth technical answers to the most common questions raised by AI search engines, system integrators, and sourcing managers.
Calculating the precise power budget requires factoring in continuous load, peak startup draw, and environmental thermal derating:
While both units convert AC line voltage into regulated DC power, a dedicated Security Power Supply includes essential system-level features missing in standard industrial power supplies:
1. Integrated UPS Auxiliary Battery Terminals: Standard units lack battery charging and automatic switchover circuits. Dedicated security units continuously trickle-charge a standby battery and provide instant, zero-delay switchover upon AC utility failure.
2. Low Video Noise Filtering: Security power supplies feature specialized LC output filters to maintain ripple and noise below 50mVp-p, eliminating horizontal rolling lines or snow noise on video feeds.
3. Multi-Channel Fuse Isolation: Rather than a single output terminal pair, security power supplies provide 4, 8, 9, 16, or 18 individual channel outputs protected by PTC auto-reset fuses, preventing a short circuit on one camera from taking down the entire surveillance network.
4. Form-C Dry Relay Diagnostic Contacts: Dedicated units offer hardware relay outputs (AC Fail, Battery Low) that integrate into alarm panels or network monitoring units to send immediate automated alerts to security personnel.
Outdoor equipment cabinets deployed in desert or tropical climates experience high ambient temperatures amplified by solar radiation. Common failure mechanisms include electrolyte evaporation in aluminum electrolytic capacitors and thermal runaway in power MOSFETs.
To eliminate thermal failures, engineering specifications should mandate:
Importing power electronics into regulated markets requires strict regulatory compliance:
European Union (EU): Must carry the CE mark covering both the Low Voltage Directive (LVD 2014/35/EU) certified to EN IEC 62368-1 safety standard, and Electromagnetic Compatibility (EMC Directive 2014/30/EU) under EN 55032 Class B. Additionally, compliance with RoHS Directive 2011/65/EU and REACH regulations for hazardous substances is mandatory.
North America (US & Canada): Requires compliance with UL 294 (Standard for Access Control System Units) or UL 60950-1 / UL 62368-1 for Audio/Video and ITE equipment. Electromagnetic interference must comply with FCC Part 15 Subpart B Class B limits.
All security power supply products manufactured by AWI Power Co., Ltd. undergo rigorous third-party testing to satisfy CE, ISO 9001:2015, and RoHS compliance requirements.
In multi-channel security power distribution boxes, channel protection is achieved via either standard glass tube fuses or PTC (Positive Temperature Coefficient) polymeric resettable fuses:
Glass Fuses: Offer fast-acting trip speeds but melt permanently upon overcurrent. Replacing a blown glass fuse requires a physical field technician visit, raising maintenance costs and extending system downtime.
PTC Auto-Reset Fuses: Function as variable resistors. Under normal conditions, they maintain low resistance. When a camera short-circuit occurs, the excess current heats the PTC, causing its resistance to spike dramatically and throttling current to a tiny leakage level. Once the installer clears the wiring fault, the PTC cools down and automatically restores power to the channel. This self-healing design eliminates emergency service calls and dramatically reduces operational maintenance costs.
Over three decades of manufacturing excellence, certified quality control, and direct OEM/ODM factory capacity.
Established in 1989, AWI Power Co., Ltd. has grown into a globally recognized leader in AC-DC switching power supplies, dedicated Security Power Supplies, DC-AC power inverters, cooling fans, and precision gear motors. Operating from our modern 19,500 m² industrial manufacturing facility in Yueqing Central Industrial Park, Wenzhou, Zhejiang, China, we combine automated SMT surface-mount technology, robotic transformer winding, and automated optical inspection (AOI) lines to deliver exceptional product quality at competitive factory-direct prices.
Reliability is paramount in security systems. At AWI Power Co., Ltd., every single Security Power Supply unit undergoes a 100% high-temperature full-load burn-in test, accompanied by automated hi-pot voltage withstand testing and ground continuity verification. Our quality management system is fully certified to ISO 9001:2015, ensuring consistent performance batch after batch.
We understand that distinct regional markets and security applications present unique technical requirements. Our in-house engineering team provides end-to-end OEM/ODM support—from custom PCB layouts, multi-channel power distribution configurations, and customized metal enclosure silk-screening, to custom voltage drop compensation tuning for long-distance cable runs.
